Plan the rack
Identify width, height, port count and access.
Rack connectivity · the panel collection
Bring order to every port.
Shielded and unshielded copper patch panels, blank modular frames and compact rack formats. Build the front of the rack around a clear connection plan.
01 / 19 inch / 10 inch / Loaded & blankDownload catalogue ↓
The rack connectivity collection
A place for every connection24 / 48 / MODULAR
The product collection
A panel for the way you connect.
Compare port density, mounting width, shield bonding and rear cable support.

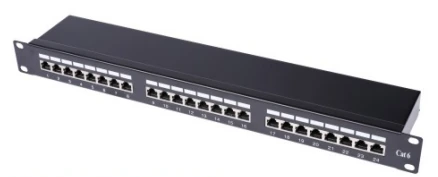

QXPP-3018 / Cat6AShielded panels
Cat6A 24 Port Shielded Patch Panel
A 19-inch 1U, 24-port shielded panel with a 90-degree termination layout in the 2024 range.

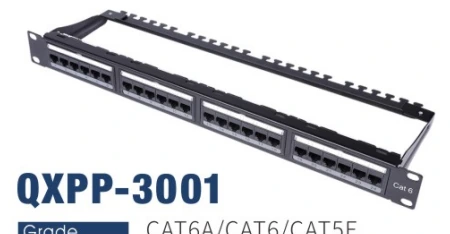

View specificationQXPP-3001 / Cat6Unshielded panels
Cat6 24 Port Unshielded Patch Panel
A 19-inch 1U modular 24-port UTP panel family with removable modules.
View specification

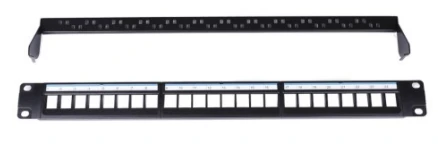

QXPP-3029-24PBlank panels
19 Inch 1U 24 Port Blank Patch Panel
A 24-port unloaded panel with cable management for buyers assembling a defined keystone configuration.
View specification

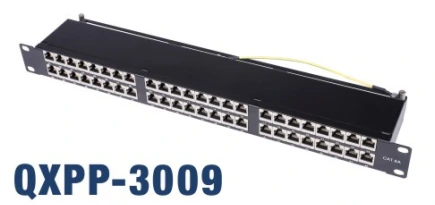

QXPP-3009Shielded panels
48 Port Shielded Patch Panel
A 19-inch 1U 48-port shielded panel family with a 90-degree termination arrangement.
View specification

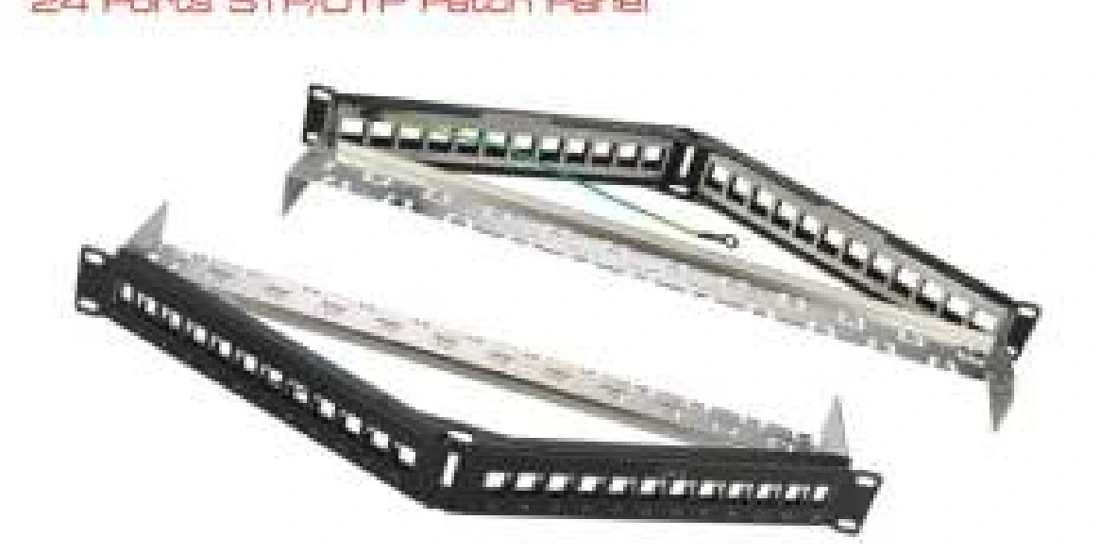

QXPP-3033-24PBlank panels
24 Port Angled Blank Patch Panel
An angled 19-inch 1U unloaded panel listed for STP and UTP modular configurations.
View specification

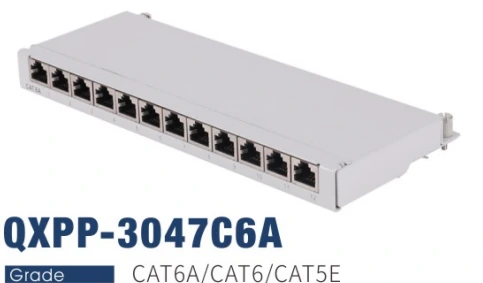

QXPP-3047C6ACompact panels
10 Inch 12 Port Shielded Patch Panel
A compact 10-inch, 0.5U 12-port shielded panel family for space-constrained rack layouts.
View specificationConfirm the complete panel and module combination before rack planning.All products →

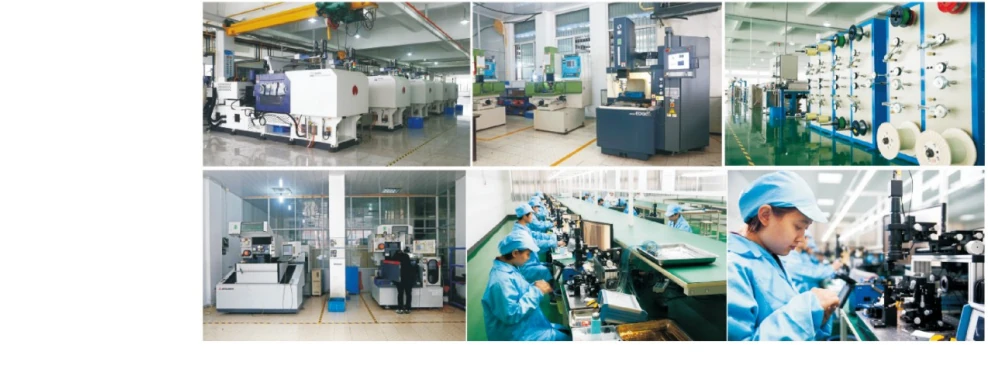

Qixiang production images · supplied product catalogueBuilt around your requirementsPlan your application →
Think beyond the front row.
A rack plan needs rear access, cable support and a workable termination arrangement as well as the right port count.
01
Port count with context
Check density, access and the actual rack dimensions.
02
Loaded or modular
Define the supplied module and category, or specify a matched unloaded frame.
03
Manage the rear
Allow for cable approach, support, shielding and identification.
The sourcing notebook
All buyer guides →The rack planning notes.
Buyer guide
Loaded or blank patch panels?
Choose between a defined termination assembly and an unloaded frame.
Read guide →Buyer guide24 or 48 ports: plan access as well as density
A practical checklist for cabinet and termination planning.
Read guide →Buyer guidePlanning a compact 10-inch patch panel installation
Check mounting format and working space before ordering.
Read guide →From specification to supply
OEM & supply support →From port schedule to rack-ready specification.
Choose the panel
Compare loaded, blank, angled and compact types.
Define the termination
Confirm category, modules and shield bonding.
Complete the enquiry
Send quantities, labels and installation constraints.
Latest from our company
All company news →Company News
No company updates published yet. Please check back for news from our team.
Let’s build your specification
Request a quotation ↗A clearer specification. A better starting point.
Send your model list and project requirements so the right product and configuration can be confirmed.
